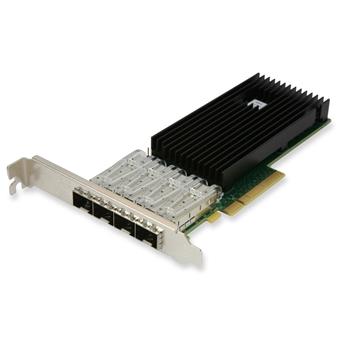

10 GIGABIT ETHERNET CARD QUAD PORT FIBER SFP+ NETWORK INTERFACE CARD INTEL^® X710BM2 BASED

High Performance, Quad Port 10GbE Ethernet Adapter, Compatible With the Netgate^® 8300, 1537, and 1541.

This 10 Gigabit Ethernet Quad Port SFP+ Computing PCI Express Network Interface Card offers simple integration into any PCI Express X8 slot to interface with 10Gigabit networks. The performance is optimized so that system I/O is not the bottleneck in high-performance networking applications. Based on the Intel X710 Ethernet controller, the card has a fully integrated Gigabit Ethernet Media Access Control (MAC) and SFI Interface.

In addition to managing MAC and PHY Ethernet layer functions, the controller manages PCI Express packet traffic across its transaction, link, and physical/logical layers. Using hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculations and TCP segmentation.

This 10 Gigabit Ethernet PCI-Express Network Interface Card is the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications, and environments within high-performance servers.

KEY FEATURES:

Supports Direct Attached Copper cable
SFP+ approved transceivers
RoHS compliant

Performance Features*:

Support for jumbo frame up to 9.5KB
Flow control support
Priority Flow Control (draft IEEE 802.1Qbb)
Enhanced Transmission Selection (draft IEEE802.1az)
Statistics management and RMON
802.1q VLAN support
DCB/DCB-X support
Message Signal interrupts (MSI-X)
Storage – Enabling competitive performance with native OS intelligent offload solutions, including NAS, iSCSI and FCoE

Host Interface:

PCI Express GEN3 X8 lanes
Support PCI Express Base Specification 3.0 (8GT/sec)

LAN and Virtualization Features*:

Network Virtualization offloads for VXLAN and NVGRE
Unified Networking Providing a single wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI, FCoE)
Virtual Bridging Support – VEPA/802.1Qbg, BPE/802.1Qbh
Physical Functions – Up to 8 per port, up to 16 per device
Support for 128 Virtual Device Queues (VMDq) per port
Hardware Queue Pairs – Up to 1.5K (non-RDMA); up to 256K (RDMA)
Virtualization – Alleviating hypervisor I/O bottlenecks by providing flow separation for Virtual Machines (VMs)

TCP/IP/L2 features*:

Receive Side Scaling (RSS)
Large Send Offload (LSO)
TCP/UDP/IP/SCTP Checksum Offload
IPV4, IPV6

SPECIFICATION:

SFP+ 10GIGABIT ETHERNET TECHNICAL SPECIFICATIONS ADAPTERS:
SFP+ (Small Form Factor Pluggable) supports:	SFI interfaces supports 10GBase-R PCS and 10 Gigabit PMA in order to connect with SFP+ to 10GBase-SR / / 1000Base-SX / 10GBase-LR and SFP+ Direct Attach
10GBase-SR SFP+: IEEE Standard / Network topology:	Fiber 10Gigabit Ethernet, 10GBASE-SR (850nM LAN PHY)
10GBase-SR SFP+: Data Transfer Rate:	10.3125GBd
10GBase-SR SFP+: Cables and Operating distance Up to:	62.5um, 160MHz/Km 26m 62.5um, (OM1)200MHz/Km 33m 50um, 400MHz/Km 66m 50um, (OM2)500 MHz/Km 82m 50um, (OM3)2000MHz/Km 300m
10GBase-LR SFP+: IEEE Standard / Network topology:	Fiber 10Gigabit Ethernet, 10GBASE-LR (1310nM LAN PHY)
10GBase-LR SFP+: Data Transfer Rate:	10.3125GBd
10GBase-LR SFP+: Cables and Operating distance Up to:	Single-Mode: 10000m at 9um
10GSFP+Cu : IEEE Standard / Network topology:	Copper 10Gigabit Ethernet, 10GSFP+Cu (Direct Attach)
1000Base-SX / 10GBase-SR SFP+: IEEE Standard / Network topology:	Fiber Gigabit Ethernet, 1000Base-SX (850nM LAN PHY) Fiber 10Gigabit Ethernet, 10GBASE-SR (850nM LAN PHY)
1000Base-SX / 10GBase-SR SFP+: Data Transfer Rate:	10.3125GBd / 1.25GBd
10000Base-SX / 10GBase-SR SFP+: Cables and Operating distance Up to:	10000Base-SX: 62.5um, 160MHz/Km 220m 62.5um, (OM1)200MHz/Km 275m 50um, 400MHz/Km 500m 50um, (OM2)500 MHz/Km 550m 50um, (OM3)2000MHz/Km >550m 10GBase-SR: 62.5um, 160MHz/Km 26m 62.5um, (OM1)200MHz/Km 33m 50um, 400MHz/Km 66m 50um, (OM2)500 MHz/Km 82m 50um, (OM3)2000MHz/Km 300m
1000Base-LX / 10GBase-LR SFP+: IEEE Standard / Network topology:	Fiber Gigabit Ethernet, 1000Base-LX (1310nM LAN PHY) Fiber 10Gigabit Ethernet, 10GBASE-LR (1310nM LAN PHY)
1000Base-LX / 10GBase-LR SFP+: Data Transfer Rate:	10.3125GBd / 1.25GBd
1000Base-LX / 10GBase-LR SFP+: Cables and Operating distance Up to:	10000Base-LX: Single-Mode: 5000m at 9um 10GBase-LR: Single-Mode: 10000m at 9um
1000Base-T SFP: IEEE Standard / Network topology:	1000BASE-T Ethernet
OPERATING SYSTEMS SUPPORT
Operating system support:	Windows Linux FreeBSD VMware
GENERAL TECHNICAL SPECIFICATIONS
Interface Standard:	PCI-Express Base Specification Revision 3.0 ( 8 GTs)
Board Size:	Low profile short add-in card: 145.542mm X 64.389mm (5.730”X 2.535”)
PCI Express Card Type:	X8 Lane
On Board Connector Voltage:	+12V +/-8%
PCI Connector:	X8 Lane
Controllers:	Intel X710BM2
Holder:	Metal Bracket
Operating Temperature:	0°C – 45°C (32°F – 113°F)
Storage:	-40°C–65°C (-40°F–149°F)
EMC Certifications:	FCC 47CFR Part 15:2013, Subpart B Class B Conducted emissions Radiated emissions EN 55022: 2010, Class B Conducted disturbance at mains terminals Conducted disturbance at telecommunication port Radiated disturbance EN 61000-3-2: 2006+A1(09)+A2(09) Harmonic current emissions EN 61000-3-3: 2008 Voltage fluctuations and flicker EN 55024: 2010 Immunity to electrostatic discharge (ESD) Radiated immunity to radio frequency electromagnetic field Conducted immunity to electrical fast transients / bursts (EFT/ B) Conducted immunity to voltage surges Conducted immunity to disturbances induced by radio frequency field Conducted immunity to voltage dips and short interruptions
LEDS
LEDs:	(2) LEDs per port Link Speed: Turns on Green 10G Link. Turn on Yellow on 1G Link Link/Act : Turns on link (Green), Blinks on activity (Green)
LEDs location:	LEDs are located on the PCB, visible via holes in the metal bracket
Connectors:	(4) SFP+ cage

ADDITIONAL INFORMATION:

If you are utilizing this card in the Netgate 1537 or 1541, you MUST add an additional 40mm case fan with at least 200 lf/m.
PLEASE CONTACT US IF YOU ARE ADDING THIS CARD TO THE Netgate 1541 OR 1537 SYSTEM FOR ADDITIONAL REQUIRED COMPONENTS.
* FEATURES AND THROUGHPUT ARE SUBJECT TO HARDWARE AND OPERATING SYSTEM SUPPORT.

WARRANTY AND SUPPORT INFORMATION:

No returns
1 year manufacturers warranty
All Specifications subject to change without notice.

10 GIGABIT ETHERNET CARD QUAD PORT FIBER SFP+ NETWORK INTERFACE CARD INTEL® X710BM2 BASED

High Performance, Quad Port 10GbE Ethernet Adapter, Compatible With the Netgate® 8300, 1537, and 1541.

KEY FEATURES:

SPECIFICATION:

SFP+ 10GIGABIT ETHERNET TECHNICAL SPECIFICATIONS ADAPTERS:

OPERATING SYSTEMS SUPPORT

GENERAL TECHNICAL SPECIFICATIONS

LEDS

ADDITIONAL INFORMATION:

WARRANTY AND SUPPORT INFORMATION:

10 GIGABIT ETHERNET CARD QUAD PORT FIBER SFP+ NETWORK INTERFACE CARD INTEL^® X710BM2 BASED

High Performance, Quad Port 10GbE Ethernet Adapter, Compatible With the Netgate^® 8300, 1537, and 1541.

Accessories

Intel X710 Ethernet Network Interface Card, 10G Quad Port SFP+, PCIe 3.0 x8

Netgate 2100 Power Supply

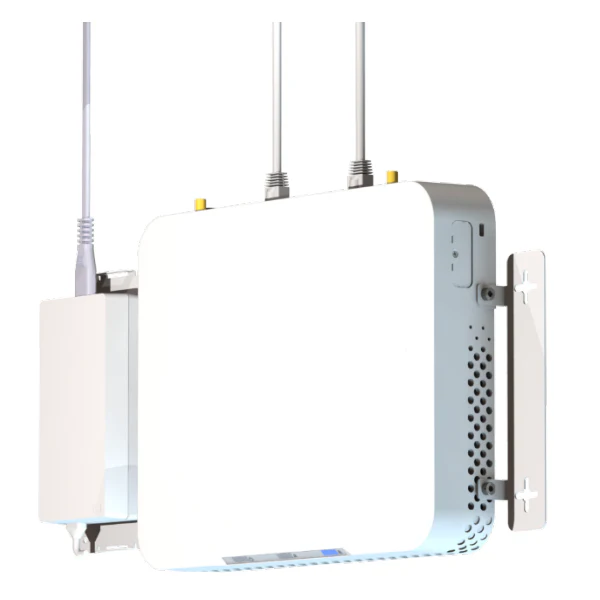

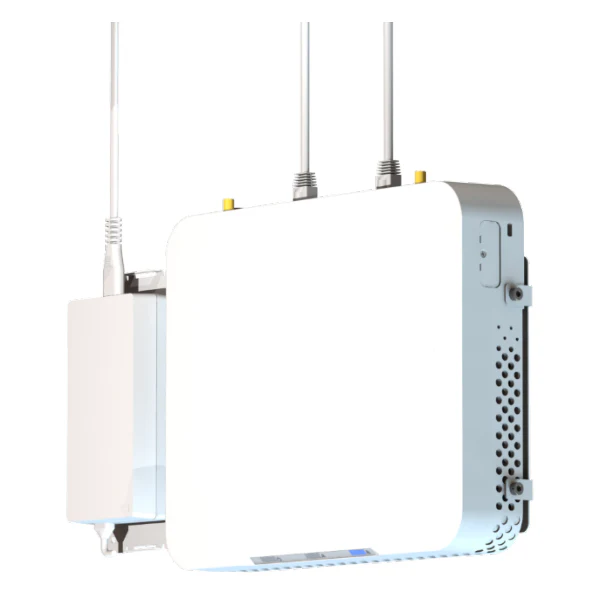

Netgate 6100/8200 Wall Mount Kit

10G SFP+ Direct-Attached Copper Twinax Passive Cable (3 Meters)

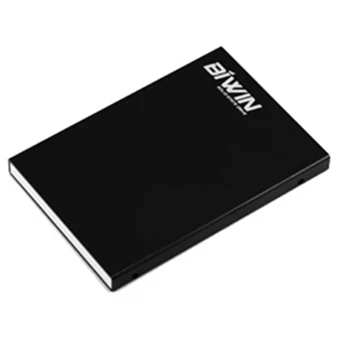

256GB 2.5" SATA SSD

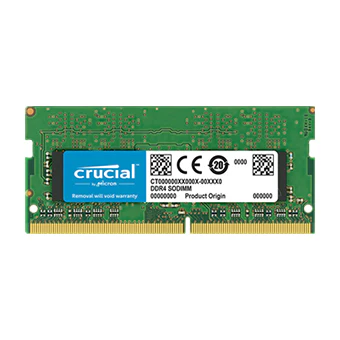

16GB DDR4 SODIMM

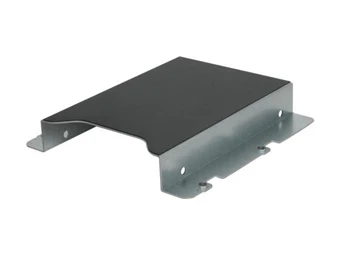

Netgate 1541, 1537 2.5" Fixed HDD/SSD Bracket

Rack Ears Kit for 1U Enclosure

Netgate 1100 Power Supply

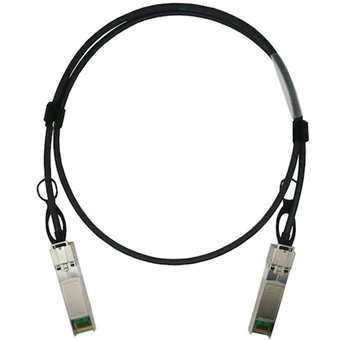

10G SFP+ Direct-Attached Copper Twinax Passive Cable (1 Meter)

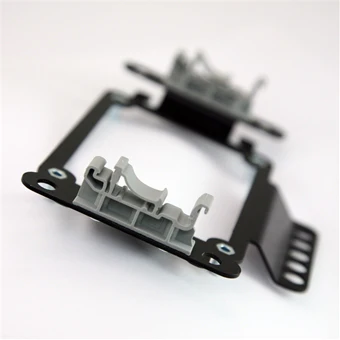

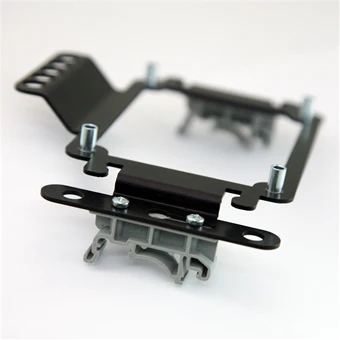

Netgate 1100 DIN Rail Mount Kit

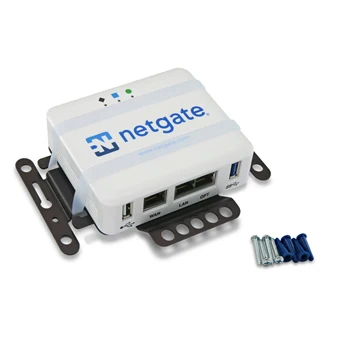

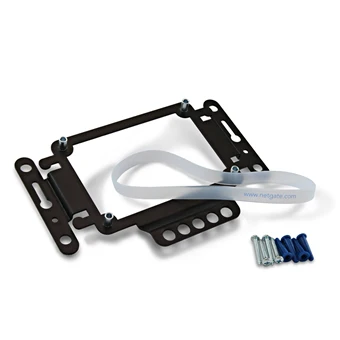

Netgate 1100 Wall Mount Kit
